KONE INNOTRACK™

A revolutionary autowalk solution that requires no pit and offers unparalleled flexibility

Product information

Description

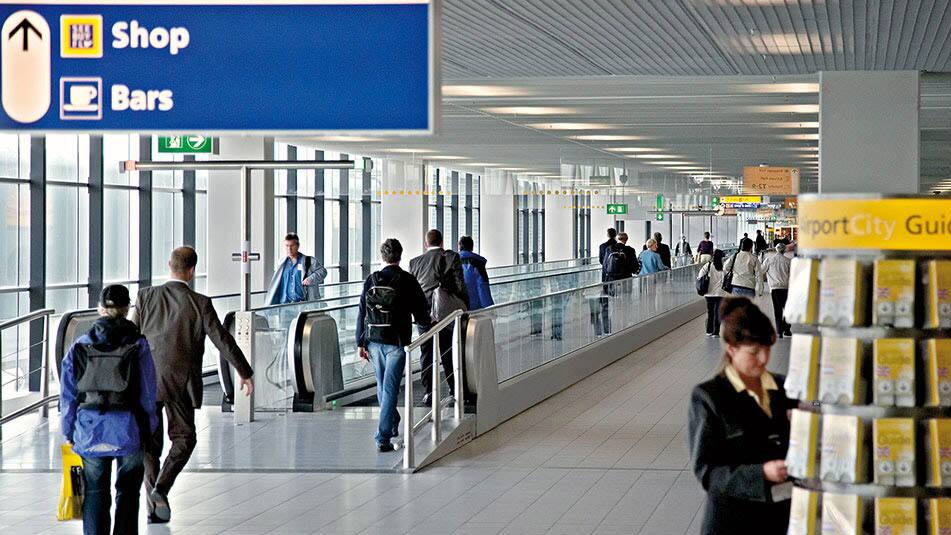

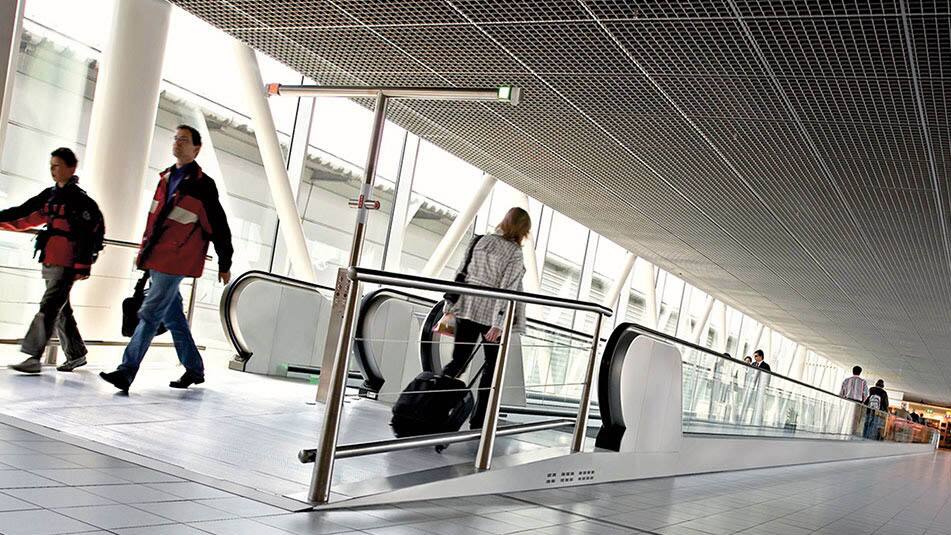

KONE InnoTrack ™ is the first autowalk that doesn’t need a pit. Its revolutionary modular design makes it ideal for improving people flow in existing buildings. You can easily adjust the length, change the color, and reinstall the autowalk in another location.

Specifications

Operational environment: Indoor
Speed: 0.5, 0.65 m/s
Inclination: 0º
Step width: 1000, 1400 mm
Length: up to 60 m

DESIGN

The components traditionally placed in the pit have been moved to the balustrades
The pallets lower themselves directly under the stepping surface instead of circling the entire truss to the bottom
The modular design of the truss makes it simple to assemble and modify

Tools and downloads

Escalator & Autowalk Planning guide

Our easy-to-understand guide gives you all the information you need when planning an escalator or autowalk solution, including guidance on building regulations and safety codes.

KONE InnoTrack™

The KONE InnoTrack is the world's first autowalk that doesn’t need a pit, meaning it can be installed in finished buildings on any floor and easily lengthened or shortened as required.

KONE Escalator and Autowalk Solutions

Our flexible range of escalators and autowalks can be tailored to a wide range of applications, and are all based on the same reliable technology and modern visual design.

Planning retail People Flow

Our easy-to-use planning guide takes you through the options for creating smooth, safe people flow in different types of retail environments, from shopping centers to big-box stores.

KONE solutions for airports

Our solutions for the unique demands of airport environments help manage the flow of people and goods into and through the airport safely, reliably, and efficiently.

solutions for transit centers

Our range of solutions designed to cope with the tough demands of busy transit center environments includes elevators, escalators, autowalks, and doors.

More Tools And Downloads

Contact us for a detailed cost estimate

ADD ELEVATORS TO YOUR BUILDING

Explore our wide range of elevator solutions tailored to a variety of building requirements.

img_Solutions for new buildings_aava door people flow

Add automatic doors to your building

Learn more about KONE Maintenance services

Find out more about KONE maintenance solutions

Learn more about KONE People Flow Intelligence solutions

Escalator solutions

Product name	Description (+type)	Segment	Maximum rise	Speed	Inclination	Duty cycle	Environment
TravelMaster 110	escalator	Commercial, retail, hotel, office	13 m	0.4, 0.5 m/s	30°, 35°	12-16 hours/day	Indoor, outdoor, semi-outdoor
TravelMaster 115	Inclined autowalk	Commercial, retail, hotel, office	8 m	0.4, 0.5 m/s	10°, 11°, 12°	12-16 hours/day	Indoor, semi-outdoor
TransitMaster 120	escalator	Infrastructure	15 m	0.4, 0.5, 0.65, 0.75 m/s	27.3°, 30°, 35°	20-24 hours/day	Indoor, semi-outdoor, outdoor
TransitMaster 140	escalator	Infrastructure	18 m	0.4, 0.5, 0.65, 0.75 m/s	27.3°, 30°	20-24 hours/day	Indoor, outdoor
TransitMaster 165	horizontal autowalk	Infrastructure	15-60 m	0.4, 0.5, 0.65, 0.75 m/s	0-6°	20-24 hours/day	Indoor, semi-outdoor
TransitMaster 185	horizontal autowalk	Infrastructure	15-100 m	0.4, 0.5, 0.65, 0.75 m/s	0-6°	20-24 hours/day	Indoor, semi-outdoor
